Big Chopper

Audio Kitchen Big Chopper

This is the bigger, louder and much heavier big brother to the Little Chopper. 30WSE takes a BIG lump of output transformer, and though you may not think it’s worth the extra cost and weight, when you hear this amp any doubts will vapourise.


Power output (watts) 0 — 15/30, Continuously Variable
Class A/B/AB A
Pre-amp tubes 12AT7, 12AX7
Power Tubes EL84x4
Rectifier type Solid State
Rectifier tubes n/a
Transformers (manufacturer) BLS
Resistors Carbon Film/Wire-wound Vitrious
Capacitors Custom made Clarity Caps
Wire UL3584 Double insulated
Pots Clarostat 2W Conductive Plastic
Other components Elma/ Grayhill Switch
Output taps (ohms) 4, 8, 16
Cabinet wood Pine
Speaker size 12″
Speaker type Celestion, others available

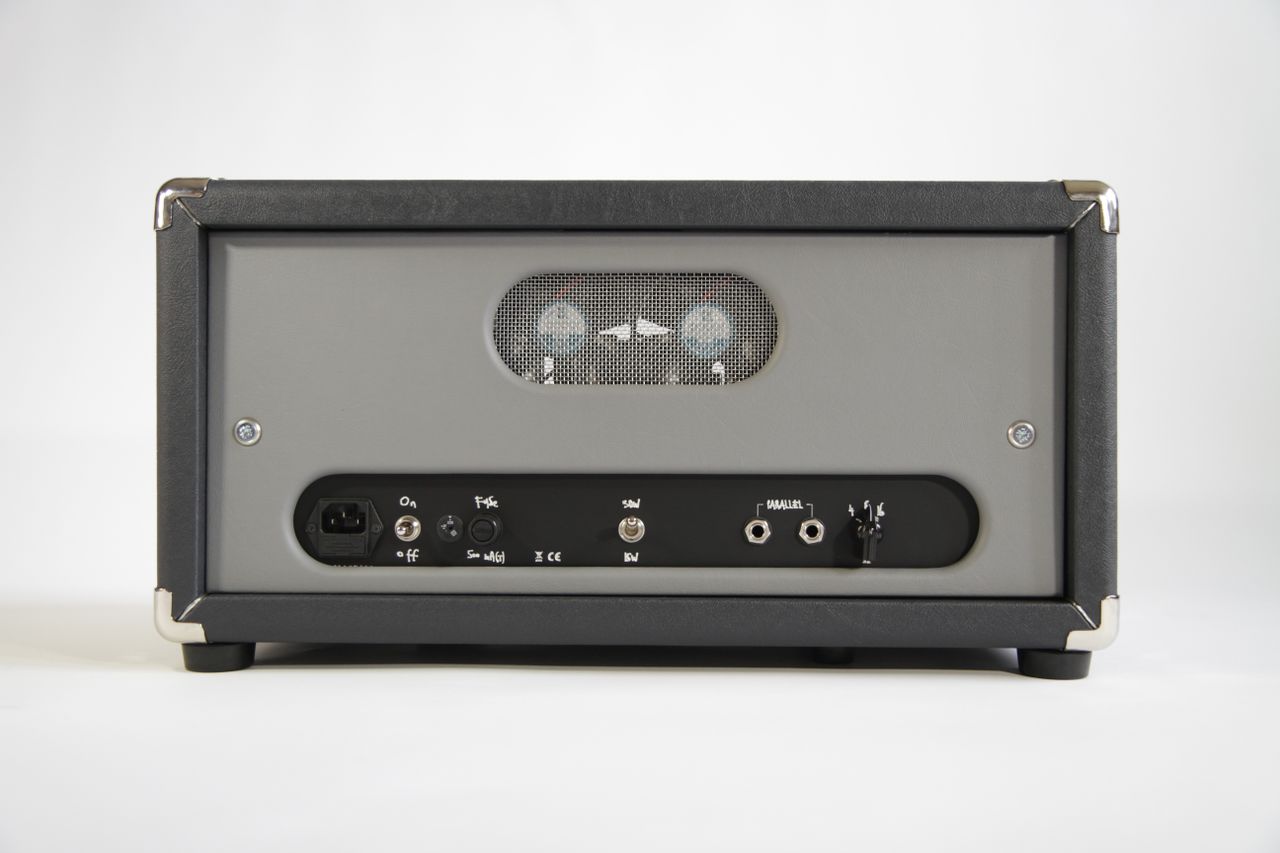

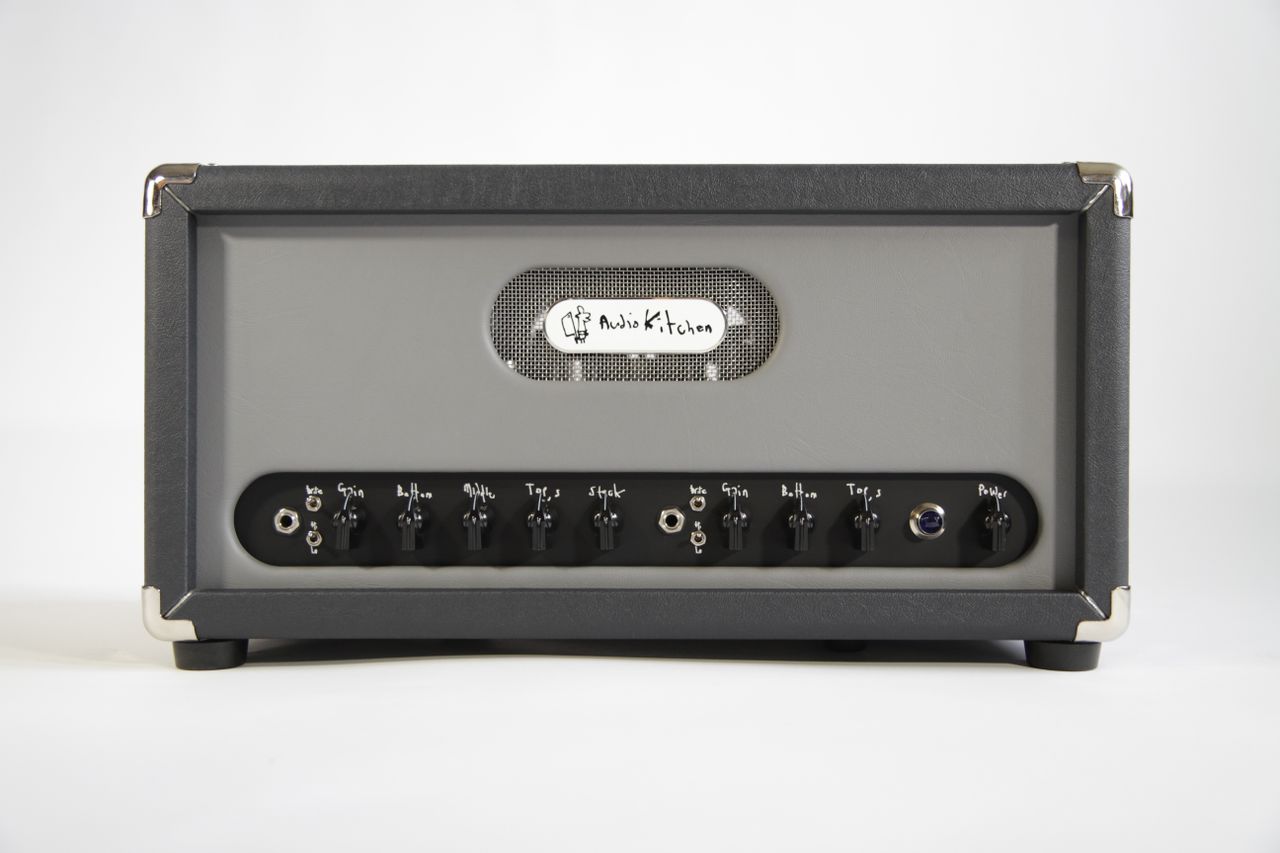

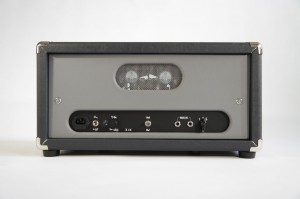

AK big chopper front AK big chopper back
